DJI AGRAS T50 Atomized Sprinkler Package

The Atomized Sprinkler Package significantly boosts the T50’s spraying efficiency by increasing the flow rate from the standard 16 L/min to a robust 24 L/min, enabling rapid application of pesticides, herbicides, or fertilizers. The centrifugal sprinklers produce adjustable droplet sizes ranging from 50 to 500 μm, allowing operators to tailor spray patterns for optimal coverage, including both the front and back of leaves. This makes the package particularly suited for challenging environments like orchards, vineyards, or dense field crops, where thorough penetration is critical. The 1570 mm nozzle spacing and up to 11-meter effective spray width ensure expansive ground coverage, reducing the number of passes needed and saving time during large-scale operations.

Crafted for durability and ease of installation, the package includes all necessary components, such as spray lance modules, composite cables, connectors, and hoses, designed for seamless integration with the AGRAS T50. The IP67-rated sprinklers are corrosion-resistant, built to withstand harsh agricultural conditions, while the included hardware ensures secure and reliable mounting. The system’s compatibility with the T50’s intelligent flight management software allows operators to fine-tune spraying parameters via the DJI Agras app, supporting precision agriculture workflows like variable rate spraying and targeted weed control.

Agdrone complements this product with expert support for implementing weed mapping and variable rate spraying workflows, ensuring the T50 Atomized Sprinkler Package integrates seamlessly into your operations across Australia. The package includes one year of DJI Care Enterprise Basic to cover general mishaps, an Australian warranty for product issues, and a repair procedure for out-of-coverage issues, providing complete confidence in your investment.

Package Contents

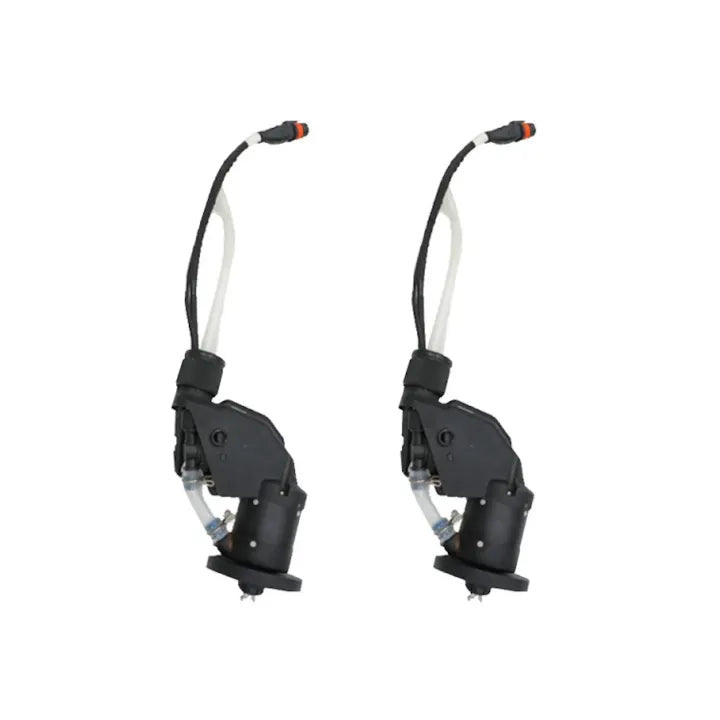

• 2 Atomized Sprinkler and Spray Lance Module
• 2 Front Sprinkler Composite Cable
• 2 U-Shaped Elbow
• 2 T-Shaped Connector
• 2 Frame Arm Bellows Hose
• 1 Spray Lance Adapter
• 2 Motor Base Stopper
• 2 Hose Clamp
• 4 M15 Screw Nut
• 2 Thumb Nut
• 1 Screw Package

Specifications

• Sprinkler Quantity: 2
• Nozzle Spacing: 1570 mm (rear spray boom)
• Droplet Size: 50 - 500 μm
• Maximum Effective Spray Width: 4-11 m (relative working height 3 m)
• Maximum Flow Rate: 24 L/min

Compatibility

• DJI AGRAS T50 Drones
