T50 - M3 Arm

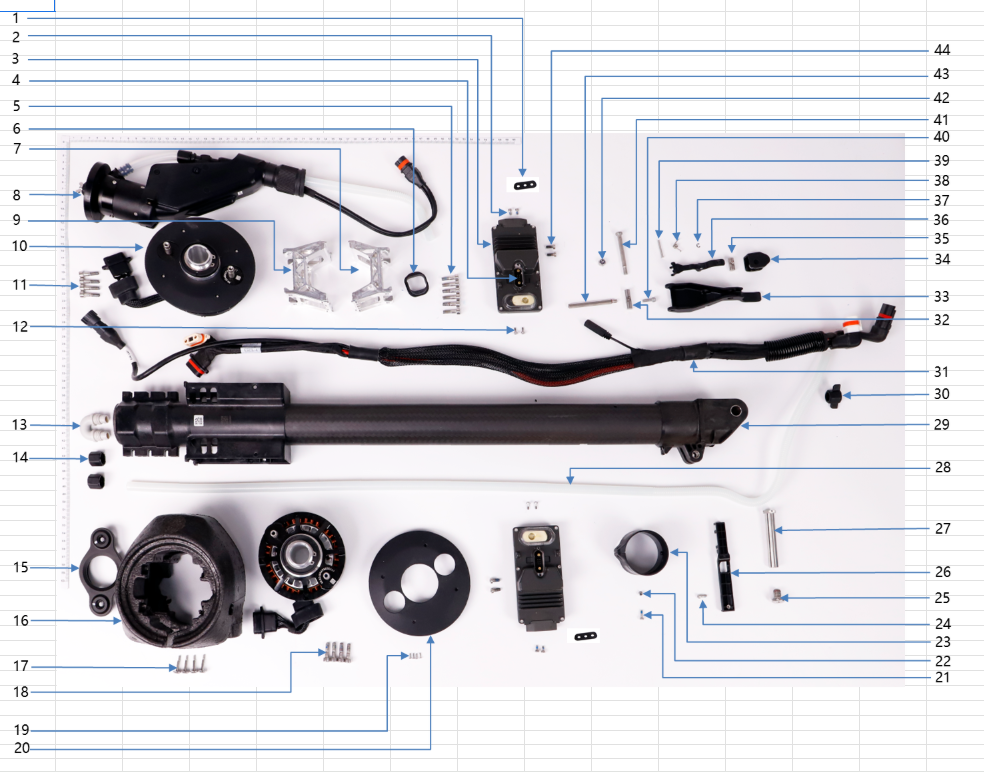

Parts Diagram for T50 - M3 Arm
1

DJI T50 M30-HT01930060-110025-5103-Y (YC.WJ.LL000213)

$7.70

2

DJI T50 Locking Piece Handle (YC.JG.QX003012)

$22.50

3

DJI T50 Three Phase Cable Sealing Silicone Rubber (YC.JG.MY000397)

$5.50

4

DJI T50 Spray Lance (-)

$0.00

5

DJI T50 Screw M30-HC100100-55-85 (YC.WJ.L00871)

$6.60

6

DJI T50 Screw M30-HC060060-55-85 (YC.WJ.L00870)

$3.30

7

DJI T50 Screw M25-HC00780040-040020-5108-N (YC.ST.LL000122)

$6.60

8

DJI T50 Screw (M50-HF01900080-095050-5103-Y) (YC.ST.LL000326)

$2.20

9

DJI T50 Screw (M20-PC01200100-040010-0323-Y) (YC.ST.LL000380)

$2.20

10

DJI T50 Motor Upper Cover (YC.JG.ZS002379)

$8.80

11

DJI T50 Motor Cover (YC.JG.FP000028)

$9.90

12

DJI T50 Motor Base (Upper) (YC.JG.QX003096)

$24.00

13

DJI T50 Motor Base (Lower) (YC.JG.QX003097)

$24.00

14

DJI T50 M60-HX100060-5103_01 (YC.WJ.LM000044)

$8.25

15

DJI T50 M40-HC01400140-070039-4105-Y (YC.ST.LL000148)

$5.50

16

DJI T50 M3&M4 Aircraft Arm ESC Composite Cable (YC.XC.DD000572)

$295.00

17

DJI T50 M3 Aircraft Arm (Rear Left) (BC.AG.SS000698)

$379.00

18

DJI T50 M20-TC00700060-033010-0004-Y (YC.ST.LL000208)

$5.50

19

DJI T50 Locking Piece_Handle Connecting Rod Shaft (YC.JG.QX001243)

$9.35

20

DJI T50 Lower Propeller Adapter (YC.JG.QX002177)

$27.50

21

DJI T50 Locking Piece Handle Rubber Sleeve (YC.JG.ZS003560)

$7.70

22

DJI T50 Locking Piece Fixing Screw Bolt (YC.JG.LD000041)

$5.50

23

DJI T50 Locking Piece Connection Rod (YC.JG.QX002088)

$8.25

24

DJI T50 Locking Piece Aircraft Arm Shaft (YC.JG.QX002089)

$7.70

25

DJI T50 In-Position Detector Bracket (YC.JG.ZS002278)

$3.30

26

DJI T50 Hose Rubber Sleeve (YC.JG.MY001062)

$4.95

27

DJI T50 Hose Nut (M15) (YC.JG.ZS003460)

$7.70

28

DJI T50 ESC Module (BC.AG.SS000700)

$655.00

29

DJI T50 Elbow Connector (180 Degrees) (YC.JG.CS000020)

$4.95

30

DJI T50 E-Shaped Circlip (6 mm) (YC.JG.BJ002409)

$7.70

31

DJI T50 Cable Sealing Pad (YC.JG.MY000399)

$5.50

32

DJI T50 Buckle Torsion Spring (YC.JG.TT000165)

$7.70

33

DJI T50 Buckle Rotation Shaft (YC.JG.QX003014)

$7.70

34

DJI T50 Buckle Module (BC.AG.SS000701)

$22.50

35

DJI T50 Anti-Wear Sleeve (YC.JG.ZS003557)

$7.70

36

DJI T50 Aircraft Arm Hose (YC.JG.JS000030)

$19.00

37

DJI T50 Aircraft Arm Fixing Screw Bolt (YC.JG.QX002314)

$18.48

38

DJI T50 Aircraft Arm Fixing Screw (YC.JG.LD000039)

$8.80

39

DJI T50 10033 Propulsion Motor (BC.AG.SS000668)

$506.00
