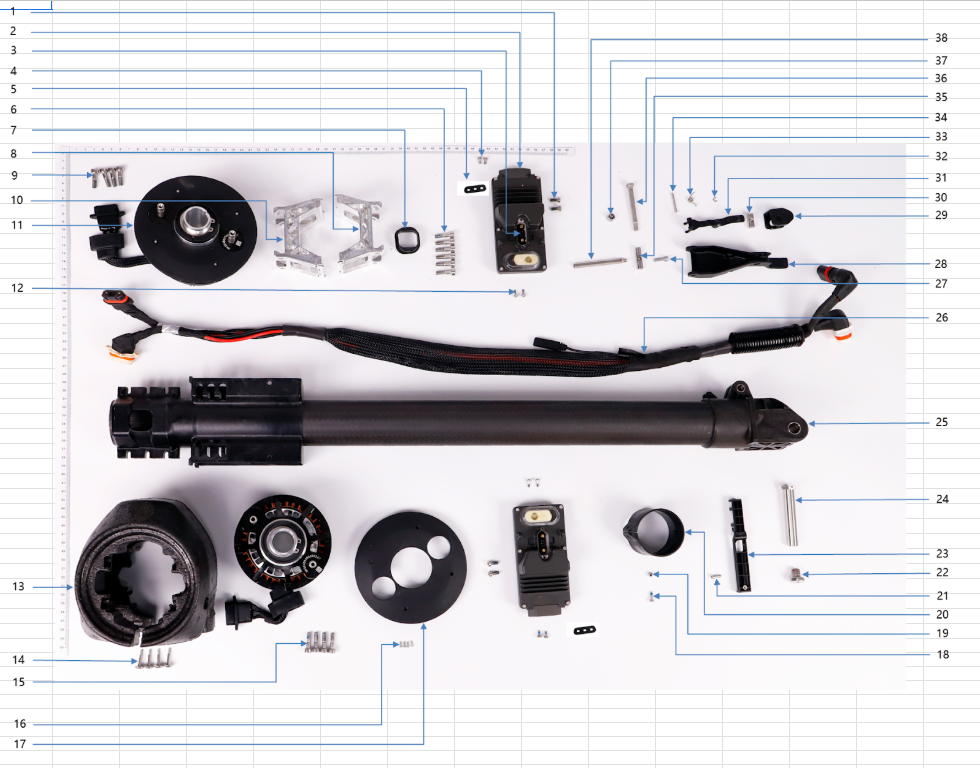

Parts diagram

T50 - M1 Arm

38 parts on this diagram · set qty · add to cart

  1. 1

    DJI T50 Screw M40-HC080080-68-85

    YC.WJ.L01234
    $3.60
  2. 2

    DJI T50 ESC Module

    BC.AG.SS000700
    $749.00
  3. 3

    DJI T50 Cable Sealing Pad

    YC.JG.MY000399
    $0.95
  4. 4

    DJI T50 Screw M30-HC060060-55-85

    YC.WJ.L00870
    $4.90
  5. 5

    DJI T50 Three Phase Cable Sealing Silicone Rubber

    YC.JG.MY000397
    $0.95
  6. 6

    DJI T50 Screw (M50-HF01900080-095050-5103-Y)

    YC.ST.LL000326
    $0.95
  7. 7

    DJI T50 Hose Rubber Sleeve

    YC.JG.MY001062
    $6.00
  8. 8

    DJI T50 Motor Base (Upper)

    YC.JG.QX003096
    $35.00
  9. 9

    DJI T50 Screw (M20-PC01200100-040010-0323-Y)

    YC.ST.LL000380
    $2.50
  10. 10

    DJI T50 Motor Base (Lower)

    YC.JG.QX003097
    $35.00
  11. 11

    DJI T50 10033 Propulsion Motor

    BC.AG.SS000668
    $580.00
  12. 12

    DJI T50 Screw M25-HC00780040-040020-5108-N

    YC.ST.LL000122
    $2.05
  13. 13

    DJI T50 Motor Cover

    YC.JG.FP000028
    $22.00
  14. 14

    DJI T50 M30-HT01930060-110025-5103-Y

    YC.WJ.LL000213
    $3.05
  15. 15

    DJI T50 Screw (M20-PC01200100-040010-0323-Y)

    YC.ST.LL000380
    $2.50
  16. 16

    DJI T50 M20-TC00700060-033010-0004-Y

    YC.ST.LL000208
    $0.95
  17. 17

    DJI T50 Motor Upper Cover

    YC.JG.ZS002379
    $11.00
  18. 18

    DJI T50 Screw M30-HC100100-55-85

    YC.WJ.L00871
    $4.90
  19. 19

    DJI T50 M3 Nut

    YC.WJ.L00877
    $2.05
  20. 20

    DJI T50 Anti-Wear Sleeve

    YC.JG.ZS003557
    $13.00
  21. 21

    DJI T50 Screw M30-HC100100-55-85

    YC.WJ.L00871
    $4.90
  22. 22

    DJI T50 Aircraft Arm Fixing Screw

    YC.JG.LD000039
    $11.00
  23. 23

    DJI T50 In-Position Detector Bracket

    YC.JG.ZS002278
    $12.00
  24. 24

    DJI T50 Aircraft Arm Fixing Screw Bolt

    YC.JG.QX002314
    $39.00
  25. 25

    DJI T50 M1 Aircraft Arm (Front Right)

    BC.AG.SS000696
    $469.00
  26. 26

    DJI T50 M1&M2 Aircraft Arm ESC Composite Cable

    YC.XC.DD000573
    $309.00
  27. 27

    DJI T50 M40-HC01400140-070039-4105-Y

    YC.ST.LL000148
    $11.95
  28. 28

    DJI T50 Locking Piece Handle

    YC.JG.QX003012
    $35.00
  29. 29

    DJI T50 Locking Piece Handle Rubber Sleeve

    YC.JG.ZS003560
    $7.70
  30. 30

    DJI T50 Locking Piece_Handle Connecting Rod Shaft

    YC.JG.QX001243
    $16.00
  31. 31

    DJI T50 Buckle Module

    BC.AG.SS000701
    $27.50
  32. 32

    DJI T50 E-Shaped Circlip (6 mm)

    YC.JG.BJ002409
    $13.00
  33. 33

    DJI T50 Buckle Torsion Spring

    YC.JG.TT000165
    $2.50
  34. 34

    DJI T50 Buckle Rotation Shaft

    YC.JG.QX003014
    $2.50
  35. 35

    DJI T50 Locking Piece Aircraft Arm Shaft

    YC.JG.QX002089
    $7.00
  36. 36

    DJI T50 Locking Piece Fixing Screw Bolt

    YC.JG.LD000041
    $10.00
  37. 37

    DJI T50 M60-HX100060-5103_01

    YC.WJ.LM000044
    $3.60
  38. 38

    DJI T50 Locking Piece Connection Rod

    YC.JG.QX002088
    $9.00
