Parts diagram

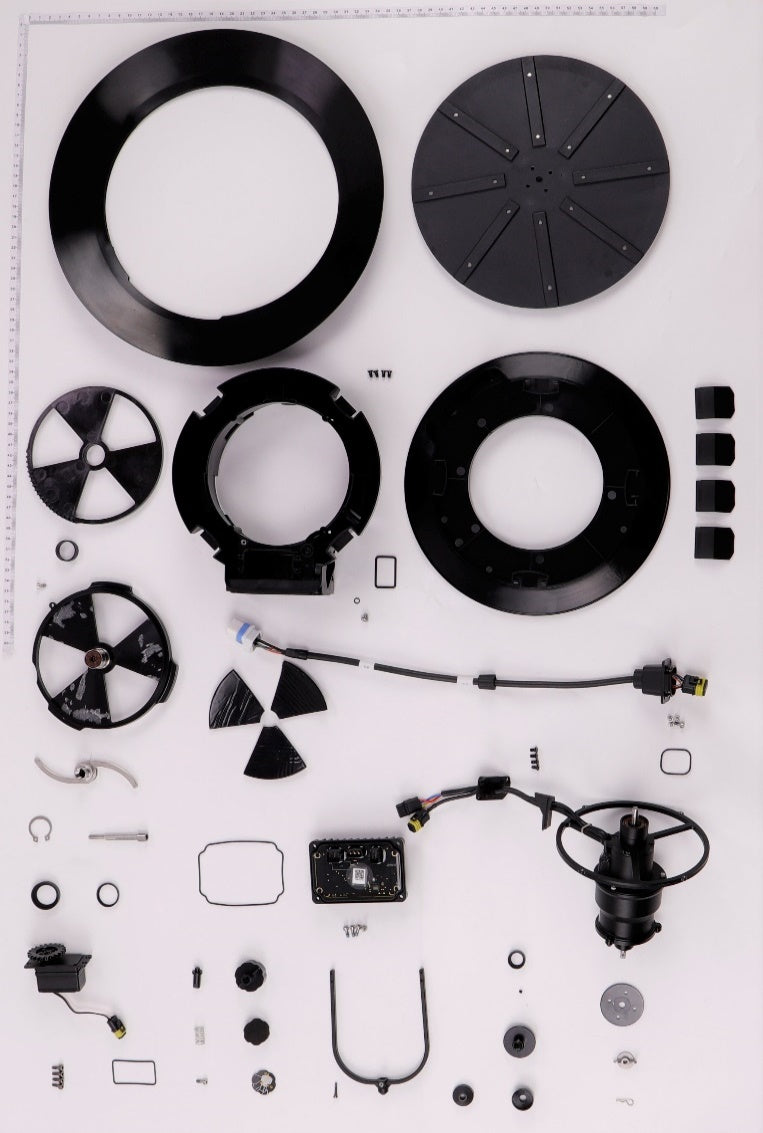

T40 Spreading Main Body

50 parts on this diagram · set qty · add to cart

  1. 1

    DJI T40 Baffle--T20P&T40

    YC.JG.ZS002376
    —
    —
  2. 2

    DJI T40 Screw M30-HB050045-55-05

    YC.WJ.LL000096
    —
    —
  3. 3

    DJI T40 Spinner Disk--T20P&T40

    BC.AG.SS000611No stock
    —
    —
  4. 3

    DJI T40 Spinner Disk--T25

    BC.AG.SS000719
    —
    —
  5. 4

    DJI T40 Large Gear

    YC.JG.ZS002414No stock
    —
    —
  6. 5

    DJI T40 Lubricating Ring

    YC.JG.QX001324
    —
    —
  7. 6

    DJI T70P Screw M30-HC060060-55-85

    YC.WJ.L00870In stock
    $4.90
  8. 7

    DJI T40 Hopper Gate

    BC.AG.SS000608No stock
    —
    —
  9. 8

    DJI T40 Teflon Pad

    YC.JG.MQ001323No stock
    —
    —
  10. 9

    DJI T40 Agitator

    BC.AG.SS000607
    —
    —
  11. 10

    DJI T40 Short Shaft--T20P&T40

    YC.JG.QX002221No stock
    —
    —
  12. 10

    DJI T40 Short Shaft--T25

    YC.JG.QX003086
    —
    —
  13. 11

    DJI T40 Axis Clip

    YC.JG.BJ000694
    —
    —
  14. 12

    DJI T40 Dustproof Cover 2

    YC.JG.MY000732
    —
    —
  15. 13

    DJI T40 Dustproof Cover 1

    YC.JG.MY000731
    —
    —
  16. 14

    DJI T40 Fixing Knob

    YC.SJ.WS001064
    —
    —
  17. 15

    DJI T40 Spray Tank Lock

    YC.WJ.ZZ000968
    —
    —
  18. 16

    DJI T40 Servo Module

    BC.AG.SS000411
    —
    —
  19. 17

    DJI T40 Spray System_ Locking Device EVA Foam

    YC.BZ.XX000417
    —
    —
  20. 18

    DJI T40 Fixing Spring

    YC.WJ.TT000078
    —
    —
  21. 19

    DJI T25P T30-HC00800080-057030-5103-N

    YC.ST.LL000235
    —
    —
  22. 20

    DJI T40 Servo Sealing Ring

    YC.JG.MY000341
    —
    —
  23. 21

    DJI T70P Screw M30-HC080080-55-85

    YC.WJ.L00868In stock
    $3.05
  24. 22

    DJI T40 Spray System_ Locking Device Sticker--T20P&T40

    YC.BZ.JJ000329
    —
    —
  25. 23

    DJI T70P Hexagonal Socket Head Cap Screws M2.5*12

    YC.WJ.L00006
    —
    —
  26. 24

    DJI T40 Sensing Part

    YC.JG.ZS001366
    —
    —
  27. 25

    DJI T70P Reduction Gearbox Motor Dustproof Cover

    YC.JG.MY000387Low stock
    $6.60
  28. 26

    DJI T40 Sealing Sleeve

    YC.JG.QX002222
    —
    —
  29. 27

    DJI T40 R-Type Thumb Nut

    YC.JG.QX002377No stock
    —
    —
  30. 28

    DJI T40 R-Type Thumb Nut

    YC.JG.QX002377No stock
    —
    —
  31. 29

    DJI T40 Spreading Flange--T20P&T40

    YC.JG.QX001443
    —
    —
  32. 29

    DJI T40 Spreading Flange--T25

    YC.JG.QX003085
    —
    —
  33. 30

    DJI T40 Spinner Disk Gasket

    YC.JG.BJ000776
    —
    —
  34. 31

    DJI T40 Upper Thread 3*3

    YC.WJ.L00005
    —
    —
  35. 32

    DJI T40 Dustproof Cover 3

    YC.JG.MY000733
    —
    —
  36. 33

    DJI T70P Screw M30-HC080080-55-85

    YC.WJ.L00868In stock
    $3.05
  37. 34

    DJI T40 Reduction Gearbox

    BC.AG.SS000606No stock
    —
    —
  38. 35

    DJI T40 Control Module

    BC.AG.SS000409
    —
    —
  39. 36

    DJI T40 Heat Sink Sealing Ring

    YC.JG.MY000344No stock
    —
    —
  40. 37

    DJI T40 Screw M30-HB050045-55-05

    YC.WJ.LL000096
    —
    —
  41. 38

    DJI T70P Screw M30-HC060060-55-85

    YC.WJ.L00870In stock
    $4.90
  42. 39

    DJI T40 Spreading Signal Cable--T20P&T40

    YC.XC.XX000847
    —
    —
  43. 39

    DJI T40 Spreading Signal Cable

    YC.XC.XX001110No stock
    —
    —
  44. 40

    DJI T70P Screw M40-HC00450039-076020-0003-Y

    YC.ST.LL000112Low stock
    $2.00
  45. 41

    DJI T40 Cable Board Sealing Ring

    YC.JG.MY000723
    —
    —
  46. 42

    DJI T70P Drain Hole Waterproof Ring

    YC.JG.MY000314Low stock
    $2.50
  47. 43

    DJI T40 Spinner Disk_Upper Disk--T20P&T40

    YC.JG.ZS002356
    —
    —
  48. 44

    DJI T40 Spinner Disk_Upper Disk Buckle

    YC.JG.ZS002358No stock
    —
    —
  49. 45

    DJI T40 Spinner Disk--T20P&T40

    YC.JG.ZS000276
    —
    —
  50. 45

    DJI T40 Spinner Disk--T25

    YC.JG.ZS003426
    —
    —
