Parts diagram

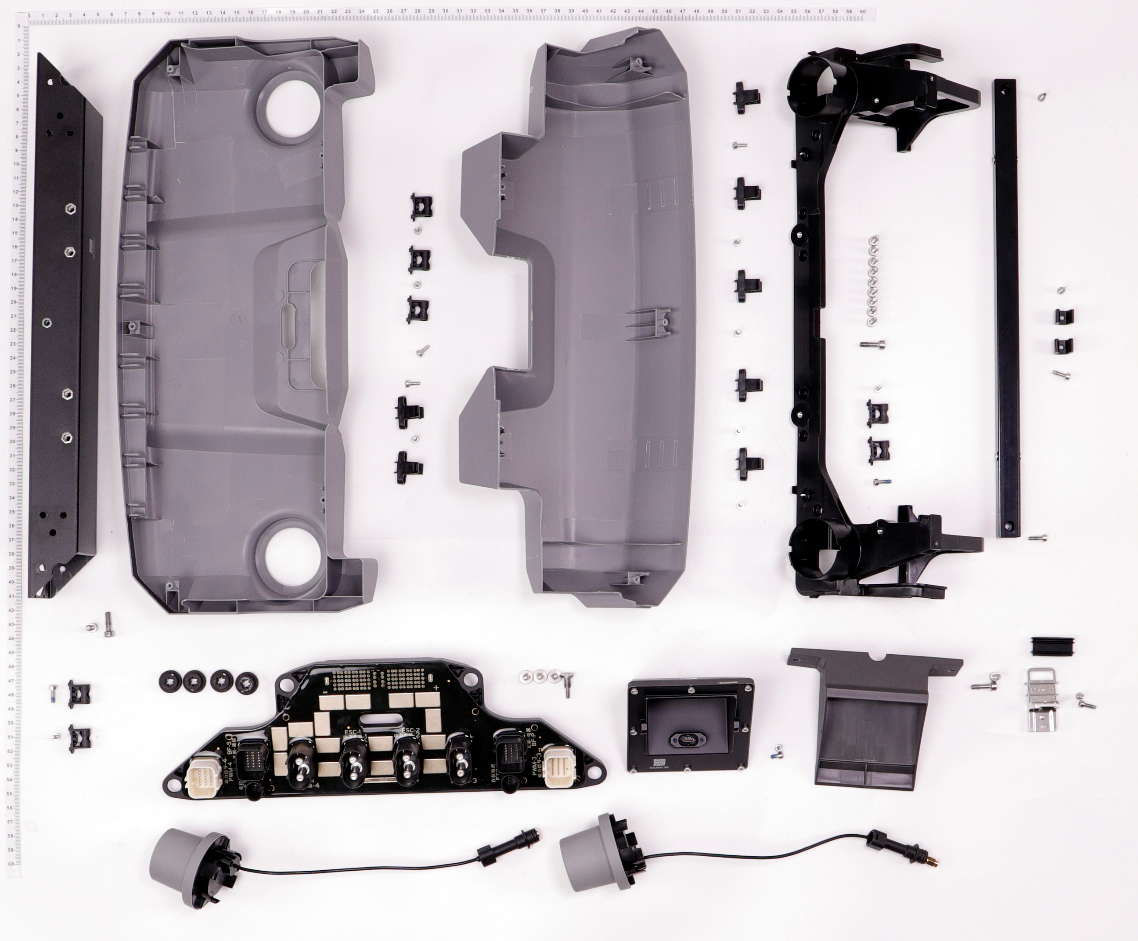

T40 Aircraft Rear Frame

27 parts on this diagram · set qty · add to cart

  1. 1

    DJI T40 Rear Frame Aluminum Tube

    BC.AG.SS000577No stock
    —
    —
  2. 2

    DJI T40 Outer Shell Buckle

    YC.JG.ZS002422No stock
    —
    —
  3. 3

    DJI T40 Rear Upper Cover

    YC.JG.ZS002298No stock
    —
    —
  4. 4

    DJI T25P T30-HC00800080-057030-5103-N

    YC.ST.LL000235
    —
    —
  5. 5

    DJI T25P Buckle Base (Female)

    YC.JG.ZS000998Low stock
    $3.95
  6. 6

    DJI T40 Rear Lower Cover

    YC.JG.ZS002299No stock
    —
    —
  7. 7

    DJI T100 Screw M40-HC01400140-070039-0003-Y

    YC.ST.LL000013Low stock
    $2.05
  8. 8

    DJI T40 Damping Pad

    YC.JG.MY000380
    —
    —
  9. 9

    DJI T70P Screw M30-HC100100-55-85

    YC.WJ.L00871In stock
    $4.90
  10. 10

    DJI T40 Power Distribution Board Module

    BC.AG.SS000558No stock
    —
    —
  11. 11

    DJI T40 RTK Antenna Module

    BC.AG.SS000560No stock
    —
    —
  12. 12

    DJI T70P M30-HC01450080-100020-5103-Y

    YC.ST.LL000226In stock
    $0.95
  13. 13

    DJI T40 Backward Vision Sensor Radar Module

    BC.AG.SS000561No stock
    —
    —
  14. 13

    DJI T40 Backward Vision Sensor Radar Module (Outside of Mainland China)

    BC.AG.SS000655
    —
    —
  15. 14

    DJI T70P Screw M30-HC060060-55-85

    YC.WJ.L00870In stock
    $4.90
  16. 15

    DJI T40 Downward Vision Radar Bracket

    YC.JG.ZS002284No stock
    —
    —
  17. 16

    DJI T70P Screw M30-HC100100-55-85

    YC.WJ.L00871In stock
    $4.90
  18. 17

    DJI T40 Battery Buckle

    YC.JG.FM000083No stock
    —
    —
  19. 18

    DJI T40 Battery Buckle Sealing Ring

    YC.JG.MY000736No stock
    —
    —
  20. 19

    DJI T100 Screw M40-HC01400140-070039-0003-Y

    YC.ST.LL000013Low stock
    $2.05
  21. 20

    DJI T70P Screw M30-HC100100-55-85

    YC.WJ.L00871In stock
    $4.90
  22. 21

    DJI T70P Screw M30-HC100100-55-85

    YC.WJ.L00871In stock
    $4.90
  23. 22

    DJI T40 Rear Frame Crossbeam

    YC.JG.QX002224No stock
    —
    —
  24. 23

    DJI T70P Screw M30-HC100100-55-85

    YC.WJ.L00871In stock
    $4.90
  25. 24

    DJI T40 Buckle

    YC.JG.ZS002482
    —
    —
  26. 25

    DJI T100 Screw M40-HC01400140-070039-0003-Y

    YC.ST.LL000013Low stock
    $2.05
  27. 26

    DJI T40 Real Shell Bracket

    YC.JG.ZS002222Low stock
    $71.00
