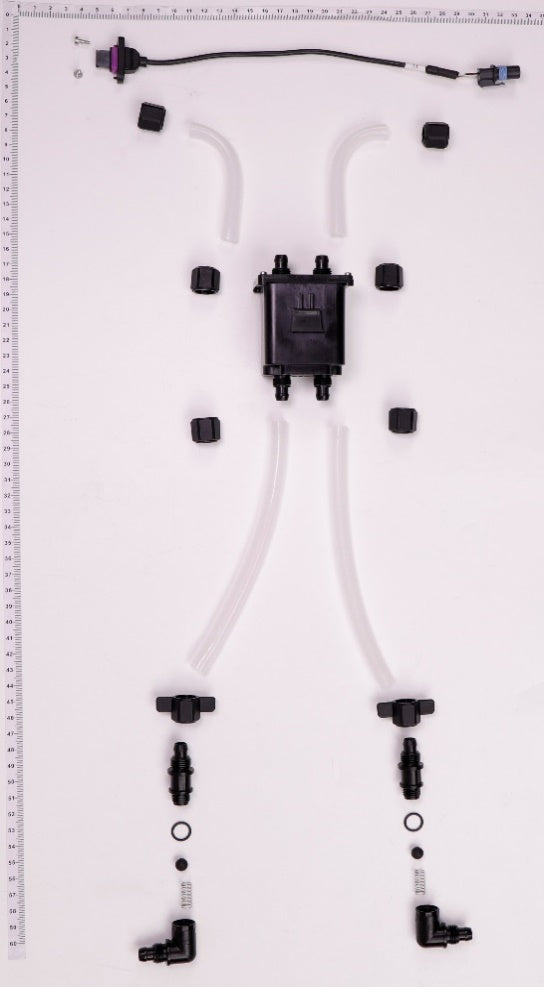

Parts diagram

T40 Aircraft Flow Meter

12 parts on this diagram · set qty · add to cart

  1. 1

    DJI T70P Screw M25-HC00780040-040020-5108-N

    YC.ST.LL000122In stock
    $2.05
  2. 2

    DJI T40 Flow Meter Signal Cable

    YC.XC.XX000839No stock
    —
    —
  3. 3

    DJI T25P Hose Nut

    YC.JG.ZS002255In stock
    $10.00
  4. 4

    DJI T40 Impeller Pump Right-Angle Connector

    YC.JG.JS000022No stock
    —
    —
  5. 5

    DJI T40 Flow Meter Module (Including Signal Cable)

    BC.AG.SS000545No stock
    —
    —
  6. 6

    DJI T40 Flow Meter Water Outlet Curving Connector

    YC.JG.JS000027
    —
    —
  7. 7

    DJI T40 Thumb Nut

    YC.JG.ZS002534No stock
    —
    —
  8. 8

    DJI T40 Hose Right-Angle Connector

    YC.JG.ZS002428No stock
    —
    —
  9. 9

    DJI T25P Pump_Connector Sealing Ring

    YC.XJ.QT000350Low stock
    $2.50
  10. 10

    DJI T40 Sealing Ball

    YC.JG.MY000705No stock
    —
    —
  11. 11

    DJI T40 Spring

    YC.JG.TT000098No stock
    —
    —
  12. 12

    DJI T40 Impeller Pump Curving Connector

    YC.JG.ZS002348No stock
    —
    —
