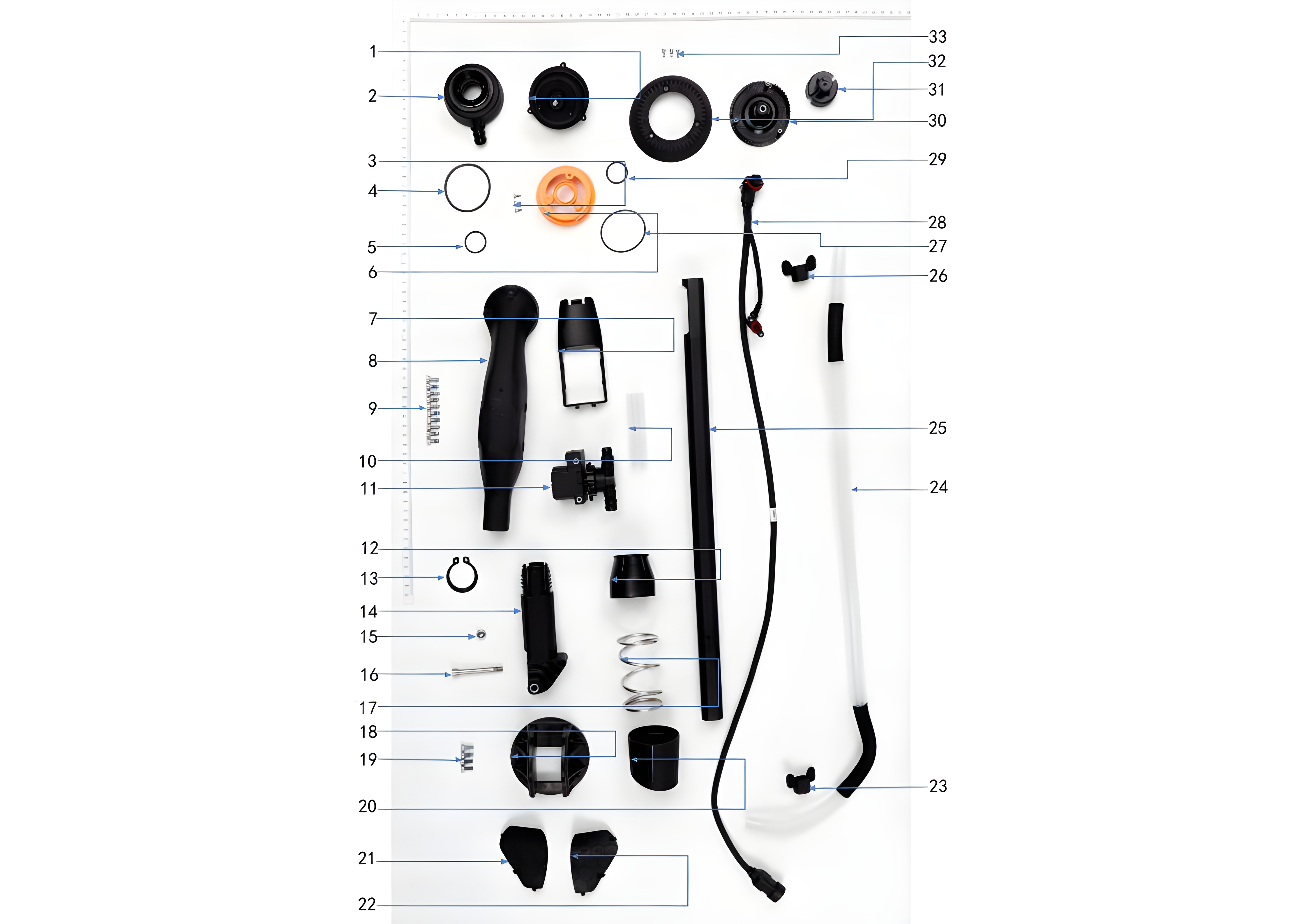

Parts diagram

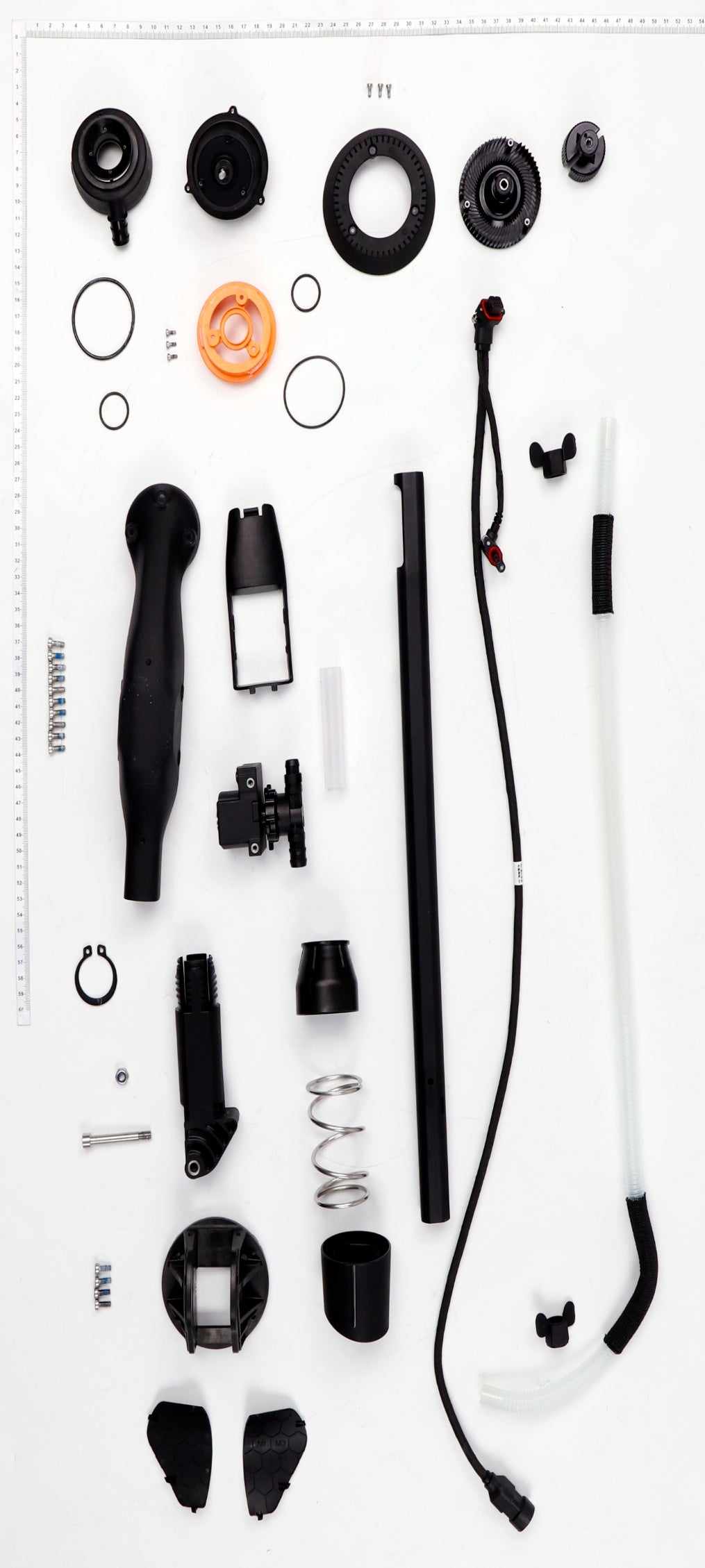

T100 Spray Lance

31 parts on this diagram · set qty · add to cart

  1. 1

    DJI T100 Centrifugal Motor

    BC.AG.SS001028Low stock
    $453.00
  2. 2

    DJI T100 Sprinkler Funnel

    YC.JG.ZS006216In stock
    $43.00
  3. 4

    DJI T100 Pump Sealing Ring

    YC.JG.MY001052In stock
    $11.95
  4. 5

    DJI T100 Sprinkler Inner Sealing Ring (OD=23.6 mm)

    YC.JG.MY001829Low stock
    $4.55
  5. 6

    DJI T100 Sprinkler Funnel Bracket

    YC.JG.ZS006215In stock
    $28.60
  6. 7

    DJI T100 Spray Lance Bottom Shell

    YC.JG.ZS006807In stock
    $28.50
  7. 8

    DJI T100 Spray Lance Outer Shell

    YC.JG.ZS006356In stock
    $29.95
  8. 9

    DJI T100 M40-HC01000100-072028-5103-N_01

    YC.WJ.LL000232In stock
    $2.05
  9. 10

    DJI T100 Sprinkler Soft Hose

    YC.JG.JS000067In stock
    $1.55
  10. 11

    DJI T100 Solenoid Valve Module

    BC.AG.SS001073In stock
    $61.00
  11. 12

    DJI T100 Spring Fixing Piece

    YC.JG.ZS006592Low stock
    $4.85
  12. 13

    DJI T100 Circlip

    YC.JG.BJ003348In stock
    $1.00
  13. 14

    DJI T100 Spray Lance Shaft Sleeve

    YC.JG.ZS006357Low stock
    $18.40
  14. 15

    DJI T100 M60-HX100060-5103_01

    YC.WJ.LM000044In stock
    $3.60
  15. 16

    DJI T100 Spray Lance Shaft

    YC.JG.QX004533In stock
    $4.85
  16. 17

    DJI T100 Compression Spring

    YC.JG.TT000275In stock
    $4.85
  17. 18

    DJI T100 Spray Lance Shaft Connector

    YC.JG.ZS006594Low stock
    $28.05
  18. 19

    DJI T100 M40-HC01000100-072028-5103-N_01

    YC.WJ.LL000232In stock
    $2.05
  19. 20

    DJI T100 Spray Lance Slider

    YC.JG.ZS006593In stock
    $4.85
  20. 21

    DJI T100 Spray Lance Shaft Connector Shell (M2 & M4)

    YC.JG.ZS006808In stock
    $6.65
  21. 22

    DJI T100 Spray Lance Shaft Connector Shell (M1 & M3)

    YC.JG.ZS006809In stock
    $6.65
  22. 23

    DJI T100 Thumb Nut

    YC.JG.ZS006171In stock
    $2.30
  23. 24

    DJI T100 Aircraft Arm Hose

    YC.JG.JS000077In stock
    $18.40
  24. 25

    DJI T100 Spray Lance Support Rod

    YC.JG.QX004534Low stock
    $30.60
  25. 26

    DJI T100 Thumb Nut

    YC.JG.ZS006171In stock
    $2.30
  26. 27

    DJI T100 Motor Sealing Ring (OD= 46.8 mm)

    YC.JG.MY001828In stock
    $10.60
  27. 28

    DJI T100 Centrifugal Spray Lance Cable

    YC.XC.XX001460In stock
    $45.30
  28. 29

    DJI T100 Sprinkler Inner Sealing Ring (OD=23.6 mm)

    YC.JG.MY001829Low stock
    $4.55
  29. 30

    DJI T100 Centrifugal Sprinkler Lower Disk

    YC.JG.ZS006219In stock
    $34.60
  30. 31

    DJI T100 Sprinkler Thumb Nut

    YC.JG.ZS006218In stock
    $3.10
  31. 32

    DJI T100 Centrifugal Sprinkler Upper Disk

    YC.JG.ZS007737In stock
    $7.55
