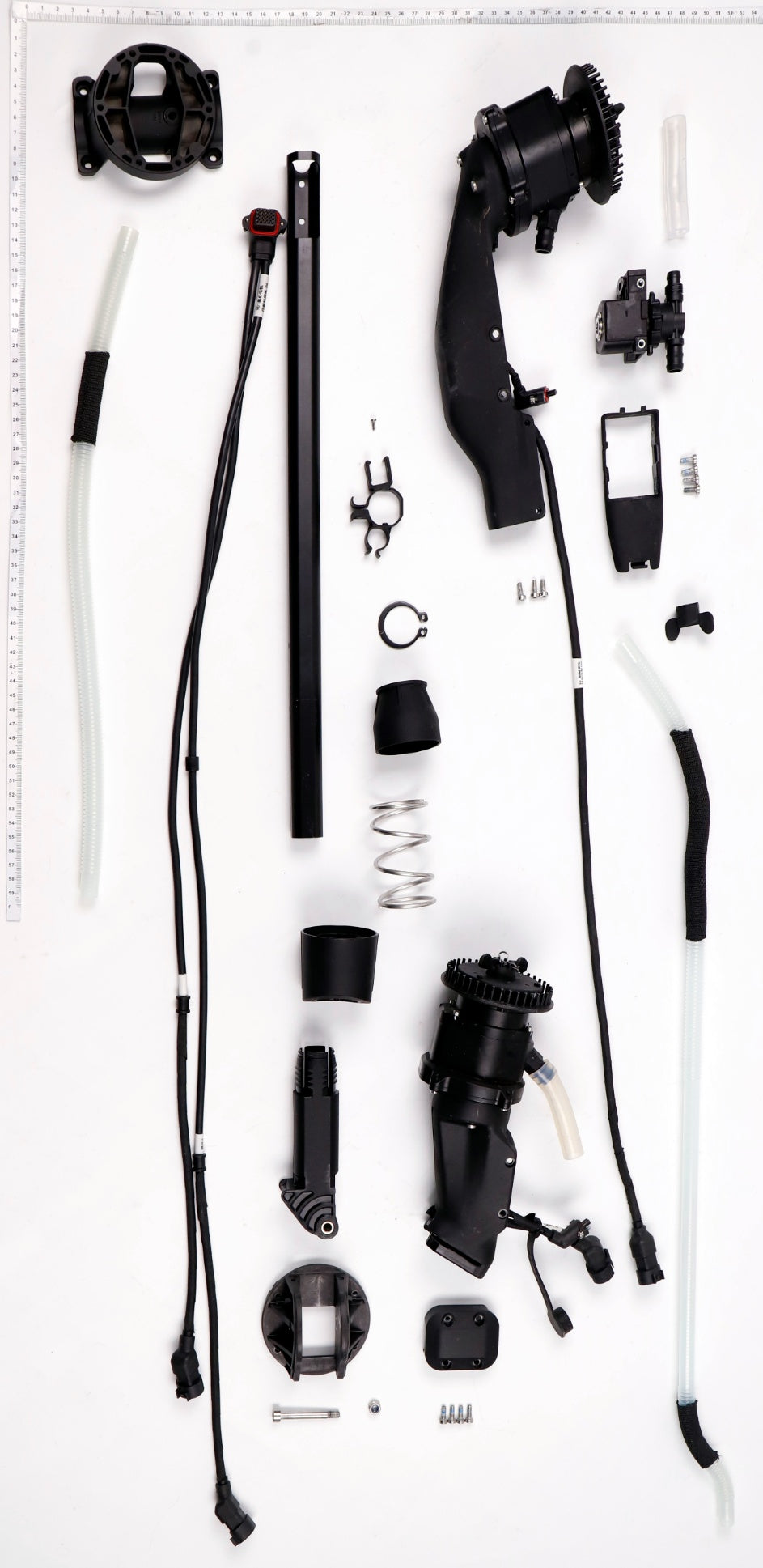

Parts diagram

T100 Mist Spray Lance

22 parts on this diagram · set qty · add to cart

  1. 1

    DJI T100 Mist Sprinkler Support Rod

    YC.JG.QX004849
    —
    —
  2. 2

    DJI T100 Mist Spray Lance Connector

    YC.JG.YZ001151
    —
    —
  3. 3

    DJI T100 Centrifugal Sprinkler Adapter Cable (Optional)

    YC.XC.XX001410
    —
    —
  4. 4

    DJI T100 Mist Hose (Optional)

    YC.JG.JS000078
    —
    —
  5. 6

    DJI T100 Hose Clip

    YC.JG.ZS007186
    —
    —
  6. 7

    DJI T100 Circlip

    YC.JG.BJ003348In stock
    $1.00
  7. 8

    DJI T100 Spring Fixing Piece

    YC.JG.ZS006592In stock
    $4.85
  8. 9

    DJI T100 Compression Spring

    YC.JG.TT000275In stock
    $4.85
  9. 10

    DJI T100 Spray Lance Slider

    YC.JG.ZS006593In stock
    $4.85
  10. 11

    DJI T100 Spray Lance Shaft Sleeve

    YC.JG.ZS006357In stock
    $18.40
  11. 12

    DJI T100 Spray Lance Shaft Connector

    YC.JG.ZS006594In stock
    $28.05
  12. 13

    DJI T100 Spray Lance Shaft

    YC.JG.QX004533In stock
    $4.85
  13. 14

    DJI T100 M60-HX100060-5103_01

    YC.WJ.LM000044In stock
    $3.60
  14. 15

    DJI T100 M40-HC01000100-072028-5103-N_01

    YC.WJ.LL000232Available to order
    $2.05
  15. 16

    DJI T100 Mist Spray Lance Fixing Base

    YC.JG.ZS007187
    —
    —
  16. 18

    DJI T100 Aircraft Arm Hose

    YC.JG.JS000077In stock
    $18.40
  17. 19

    DJI T100 Thumb Nut

    YC.JG.ZS006171In stock
    $2.30
  18. 20

    DJI T100 M40-HC01000100-072028-5103-N_01

    YC.WJ.LL000232Available to order
    $2.05
  19. 21

    DJI T100 M40-HC01000100-072028-5103-N_01

    YC.WJ.LL000232Available to order
    $2.05
  20. 22

    DJI T100 Spray Lance Bottom Shell

    YC.JG.ZS006807In stock
    $28.50
  21. 23

    DJI T100 Solenoid Valve Module

    BC.AG.SS001073Available to order
    $61.00
  22. 24

    DJI T100 Sprinkler Soft Hose

    YC.JG.JS000067In stock
    $1.55
