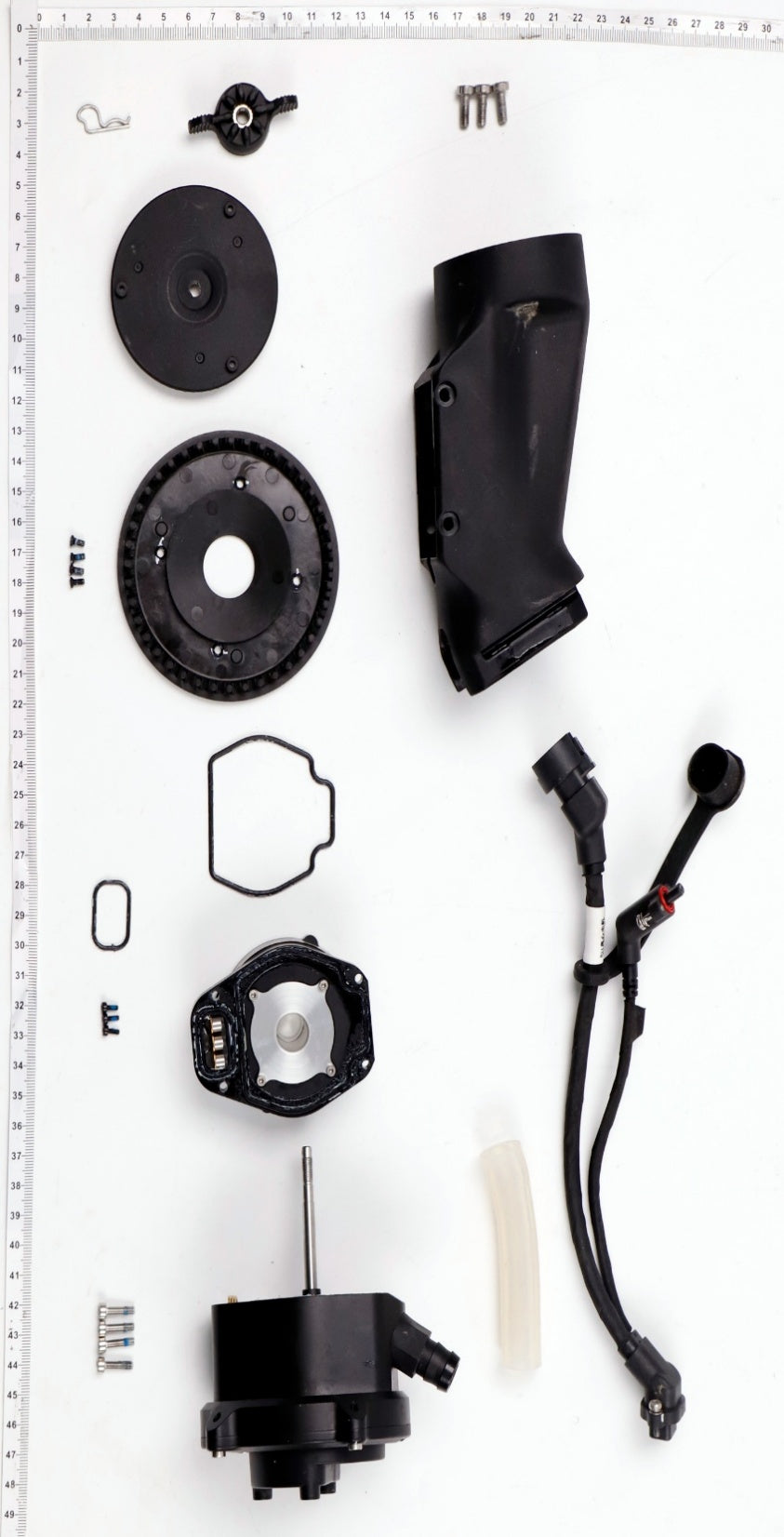

Parts diagram

T100 Mist Inner Spray Lance

17 parts on this diagram · set qty · add to cart

  1. 1

    DJI T25P Centrifugal Sprinkler Nut

    YC.JG.ZS004510Low stock
    $1.76
  2. 2

    DJI T100 R-Type Pin

    YC.JG.TT000203In stock
    $0.90
  3. 3

    DJI T100 Mist Sprinkler Lower Disk

    YC.JG.ZS006907
    —
    —
  4. 4

    DJI T100 Mist Sprinkler Upper Disk

    YC.JG.ZS006906
    —
    —
  5. 5

    DJI T100 Screw (M25-HF00550038-040016-3126-Y)

    YC.ST.LL000381
    —
    —
  6. 6

    DJI T100 Sealing Ring L

    YC.JG.MY002093
    —
    —
  7. 7

    DJI T100 Sealing Ring S

    YC.JG.MY002094
    —
    —
  8. 8

    DJI T100 M20-HC00500050-040020-3123-Y

    YC.ST.LL000159
    —
    —
  9. 9

    DJI T100 4810 Mist Sprinkler Lower Motor

    BC.AG.SS001175
    —
    —
  10. 10

    DJI T100 Screw M30-HC01200120-055030-5104-Y

    YC.ST.LL000363
    —
    —
  11. 11

    DJI T100 4212 Mist Sprinkler Upper Motor

    BC.AG.SS001174
    —
    —
  12. 12

    DJI T100 Mist Sprinkler Funnel

    YC.JG.ZS006905
    —
    —
  13. 13

    DJI T100 Inlet Sealing Ring

    YC.JG.MY002043
    —
    —
  14. 14

    DJI T100 Sprinkler Soft Hose

    YC.JG.JS000067In stock
    $1.55
  15. 15

    DJI T70P Centrifugal Sprinkler Adapter Cable

    YC.XC.XX001394
    —
    —
  16. 16

    DJI T100 Mist Spray Lance Outer Shell

    YC.JG.ZS007185
    —
    —
  17. 17

    DJI T100 M40-HC01000100-072028-5103-N_01

    YC.WJ.LL000232Available to order
    $2.05
