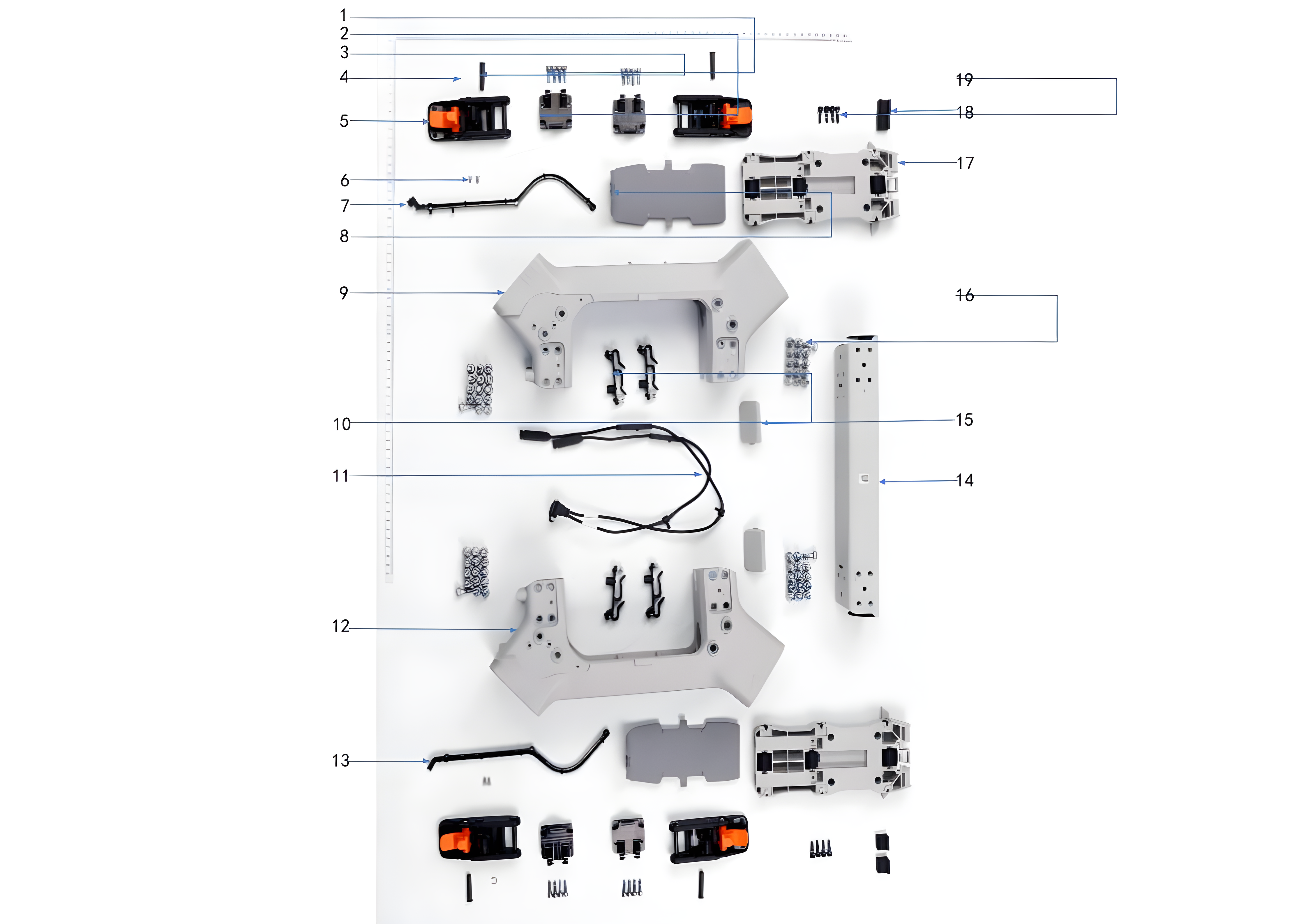

Parts diagram

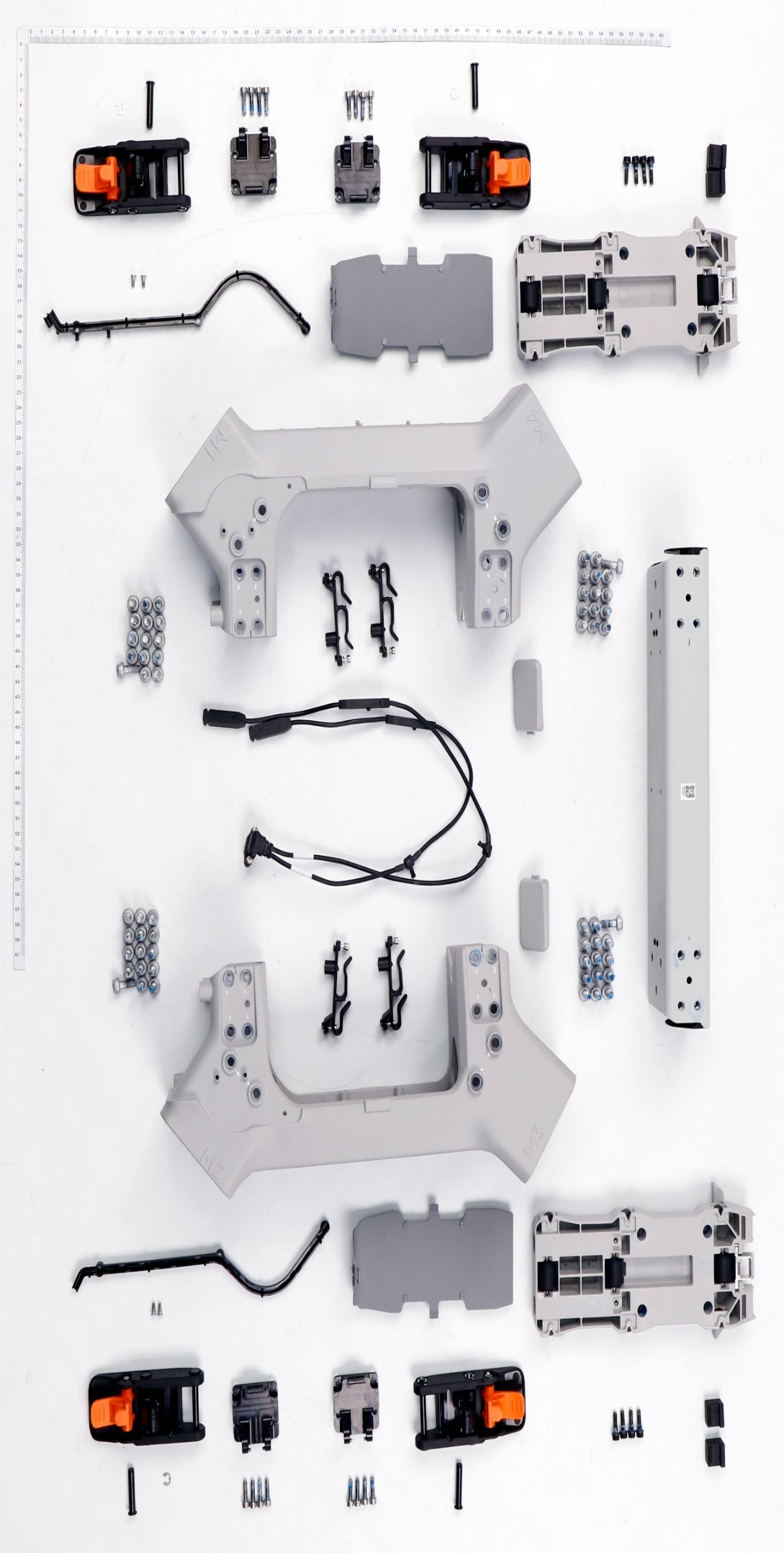

T100 Middle & Rear Frame

T100 Middle & Rear Frame

18 parts on this diagram · set qty · add to cart

  1. 1

    DJI T100 Screw M40-HC01400140-070039-0003-Y

    YC.ST.LL000013Low stock
    $2.05
  2. 2

    DJI T100 Buckle Support Base

    YC.JG.QX004627In stock
    $30.60
  3. 3

    DJI T100 Pin Shaft (29.7 mm)

    YC.JG.QX004628In stock
    $6.65
  4. 4

    DJI T100 E-Type Circlip (OD=9 mm)

    YC.JG.BJ003137In stock
    $1.35
  5. 5

    DJI T100 Middle Frame Buckle Module

    BC.AG.SS001094In stock
    $112.00
  6. 6

    DJI T100 Screw M30-HC00700054-058012-4203-Y

    YC.ST.LL000542In stock
    $0.65
  7. 7

    DJI T100 SDR Cable Clamp B0

    YC.JG.ZS006716In stock
    $6.65
  8. 8

    DJI T100 Airframe Cable Cover

    YC.JG.ZS006685In stock
    $6.65
  9. 9

    DJI T100 Middle Frame Aluminum Tube (Right)

    BC.AG.SS001105Low stock
    $496.55
  10. 10

    DJI T100 Airframe Cable Clamp

    YC.JG.ZS006713In stock
    $6.65
  11. 11

    DJI T100 In-Position Detector Cable

    YC.XC.XX001488In stock
    $77.00
  12. 12

    DJI T100 Middle Frame Aluminum Tube (Left)

    BC.AG.SS001104In stock
    $496.55
  13. 13

    DJI T100 SDR Cable Clamp B1

    YC.JG.ZS006717Low stock
    $6.65
  14. 14

    DJI T100 Rear Frame Aluminum Tube

    BC.AG.SS001106In stock
    $129.00
  15. 15

    DJI T100 Airframe Screw Cover

    YC.JG.ZS007292In stock
    $1.35
  16. 16

    DJI T100 Screw (M60-HT01530110-113060-5103-Y)

    YC.ST.LL000720In stock
    $1.35
  17. 17

    DJI T100 Battery Slider Module

    BC.AG.SS001095In stock
    $77.00
  18. 18

    DJI T100 Battery Bracket Rubber Pad

    YC.JG.MY001504Low stock
    $1.55
