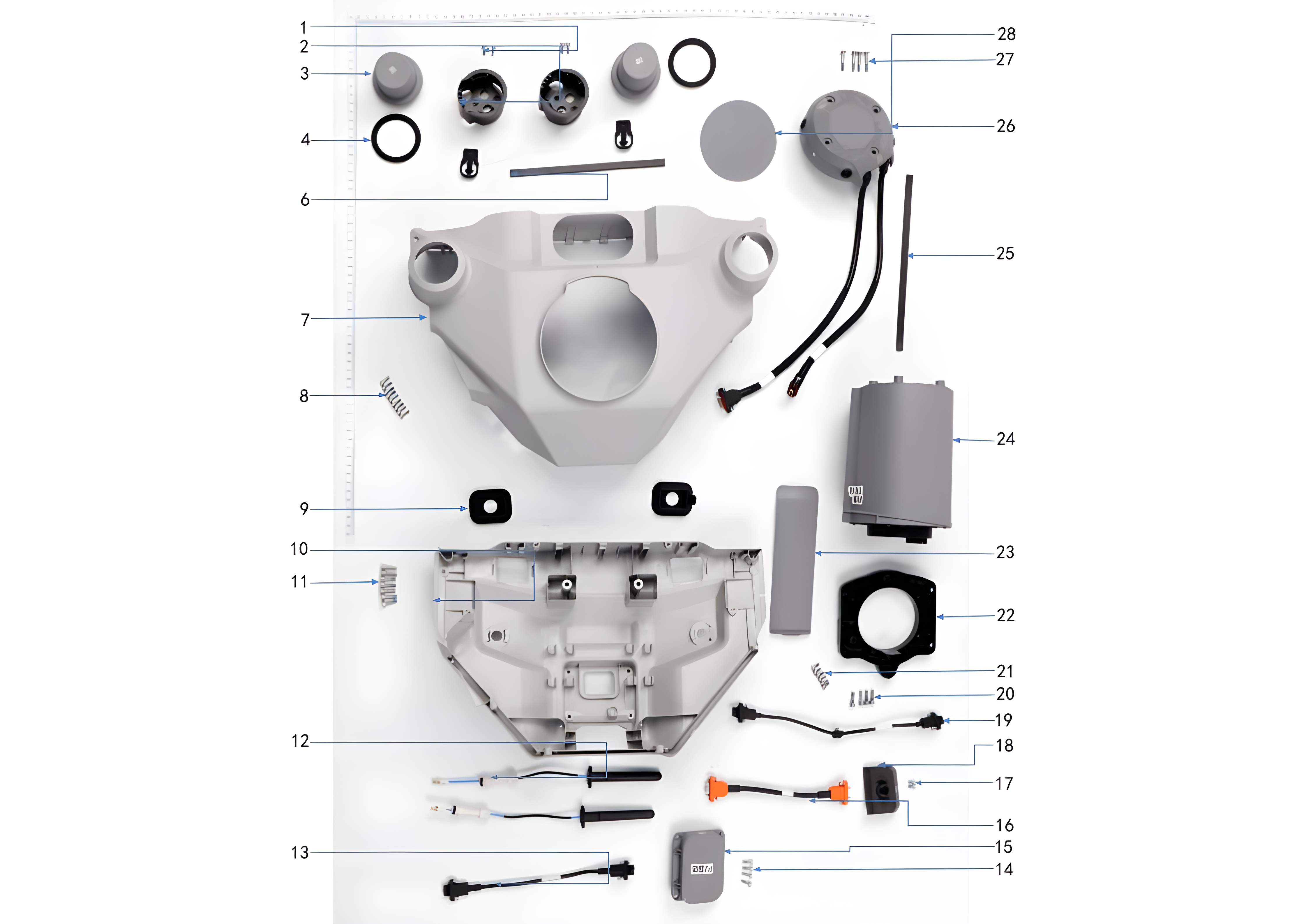

Parts diagram

T100 Front Frame (2)

45 parts on this diagram · set qty · add to cart

  1. 1

    DJI T100 Screw M40-HC01400140-070039-0003-Y

    YC.ST.LL000013
    $2.05
  2. 1

    DJI T100 Screw M30-HC080080-55-85

    YC.WJ.L00868
    $3.05
  3. 2

    DJI T100 RTK Bracket

    YC.JG.ZS006627
    $6.65
  4. 2

    DJI T100 Buckle Support Base

    YC.JG.QX004627
    $30.60
  5. 3

    DJI T100 RTK Antenna Module

    BC.AG.SS001034
    $176.00
  6. 3

    DJI T100 Pin Shaft (29.7 mm)

    YC.JG.QX004628
    $6.65
  7. 4

    DJI T100 RTK Rubber Ring

    YC.JG.MY001898
    $6.65
  8. 4

    DJI T100 E-Type Circlip (OD=9 mm)

    YC.JG.BJ003137
    $1.35
  9. 5

    DJI T100 Middle Frame Buckle Module

    BC.AG.SS001094
    $112.00
  10. 6

    DJI T100 Front Radar Sealing Foam

    YC.JG.MQ003696
    $6.65
  11. 6

    DJI T100 Screw M30-HC00700054-058012-4203-Y

    YC.ST.LL000542
    $0.65
  12. 7

    DJI T100 Front Top Shell

    YC.JG.ZS006459
    $77.00
  13. 7

    DJI T100 SDR Cable Clamp B0

    YC.JG.ZS006716
    $6.65
  14. 8

    DJI T100 Screw M30-HC100100-55-85

    YC.WJ.L00871
    $2.05
  15. 8

    DJI T100 Airframe Cable Cover

    YC.JG.ZS006685
    $6.65
  16. 9

    DJI T100 Cable Rubber Stopper

    YC.JG.MY001896
    $6.65
  17. 9

    DJI T100 Middle Frame Aluminum Tube (Right)

    BC.AG.SS001105
    $496.55
  18. 10

    DJI T100 Front Shell Bottom Cover

    YC.JG.ZS006460
    $83.00
  19. 10

    DJI T100 Airframe Cable Clamp

    YC.JG.ZS006713
    $6.65
  20. 11

    DJI T100 Screw M40-HC01400140-070039-0003-Y

    YC.ST.LL000013
    $2.05
  21. 11

    DJI T100 In-Position Detector Cable

    YC.XC.XX001488
    $77.00
  22. 12

    DJI T100 SDR Antenna (Front)

    YC.DZ.AA000462
    $46.55
  23. 12

    DJI T100 Middle Frame Aluminum Tube (Left)

    BC.AG.SS001104
    $496.55
  24. 13

    DJI T100 Downward Radar Signal Cable

    YC.XC.XX001427
    $50.00
  25. 13

    DJI T100 SDR Cable Clamp B1

    YC.JG.ZS006717
    $6.65
  26. 14

    DJI T100 Screw M30-HC100100-55-85

    YC.WJ.L00871
    $2.05
  27. 14

    DJI T100 Rear Frame Aluminum Tube

    BC.AG.SS001106
    $129.00
  28. 15

    DJI T100 Downward Radar Module

    BC.AG.SS001087
    $368.20
  29. 15

    DJI T100 Airframe Screw Cover

    YC.JG.ZS007292
    $1.35
  30. 16

    DJI T100 FPV Signal Cable

    YC.XC.XX001419
    $63.00
  31. 16

    DJI T100 Screw (M60-HT01530110-113060-5103-Y)

    YC.ST.LL000720
    $1.35
  32. 17

    DJI T100 Screw M30-HC060060-55-85

    YC.WJ.L00870
    $2.05
  33. 17

    DJI T100 Battery Slider Module

    BC.AG.SS001095
    $77.00
  34. 18

    DJI T100 Battery Bracket Rubber Pad

    YC.JG.MY001504
    $1.55
  35. 19

    DJI T100 Screw (M40-HC01400115-085047-4203-Y)

    YC.ST.LL000730
    $0.70
  36. 19

    DJI T100 Front Radar Signal Cable

    YC.XC.XX001467
    $46.55
  37. 20

    DJI T100 Screw M40-HC01400140-070039-0003-Y

    YC.ST.LL000013
    $2.05
  38. 21

    DJI T100 Screw M30-HC080080-55-85

    YC.WJ.L00868
    $3.05
  39. 22

    DJI T100 Front Radar Base Bracket

    YC.JG.ZS006690
    $25.25
  40. 23

    DJI T100 Quad Vision Sensor Cable Decorative Cover

    YC.JG.ZS006691
    $12.00
  41. 24

    DJI T100 Front Radar Module (Overseas)

    BC.AG.SS001167
    $1,704.50
  42. 25

    DJI T100 Radar Protective Foam

    YC.JG.MQ003829
    $1.35
  43. 26

    DJI T100 Quad-Fisheye Vision Sensor Module

    BC.AG.SS001093
    $759.55
  44. 27

    DJI T100 M30-HC02050080-070020-5103-Y_01

    YC.WJ.LL000211
    $2.05
  45. 28

    DJI T100 Quad Vision Sensor Cover Plate

    YC.JG.MQ003804
    $6.65
