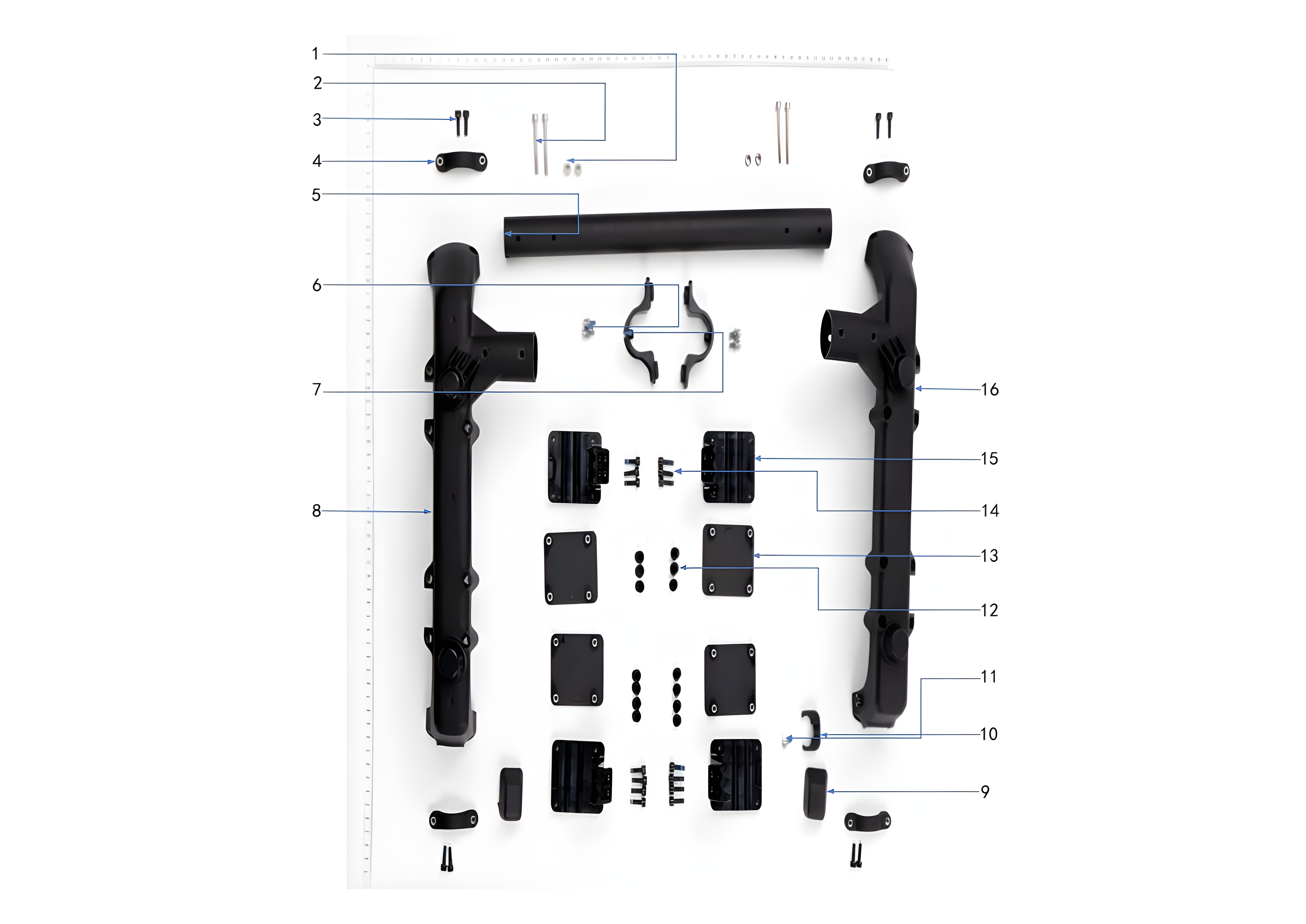

Parts diagram

T100 Frame Connector

16 parts on this diagram · set qty · add to cart

  1. 1

    DJI T100 M40-HX088065-5103

    YC.ST.LM000107
    $0.70
  2. 2

    DJI T100 Screw M40-HC04000140-070040-5103-Y

    YC.ST.LL000607
    $1.00
  3. 3

    DJI T100 Screw (M40-HC01400115-085047-4203-Y)

    YC.ST.LL000730
    $0.70
  4. 4

    DJI T100 Landing Gear C-Type Connector

    YC.JG.ZS006654
    $5.15
  5. 5

    DJI T100 Landing Gear Top Crossbar

    YC.JG.XW000215
    $30.00
  6. 6

    DJI T100 Screw (M40-HCW01000070-070040-5104-N)

    YC.ST.LL000341
    $0.90
  7. 7

    DJI T100 Spray Tank Top Mounting Piece

    YC.JG.ZS007112
    $6.05
  8. 8

    DJI T100 Frame Connector (Right)

    YC.JG.ZS005949
    $39.70
  9. 9

    DJI T100 Anti-Collision Pad

    YC.JG.MY001953
    $3.15
  10. 10

    DJI T100 Payload Cable Clamp

    YC.JG.ZS006800
    $1.10
  11. 11

    DJI T100 M40-HC01000100-072028-5103-N_01

    YC.WJ.LL000232
    $2.05
  12. 12

    DJI T100 Landing Gear Hole Plug Rubber

    YC.JG.MY002073
    $1.10
  13. 13

    DJI T100 Buckle Hook Cover

    YC.JG.ZS006707
    $6.65
  14. 14

    DJI T100 Screw (M40-HC01400115-085047-4203-Y)

    YC.ST.LL000730
    $0.70
  15. 15

    DJI T100 Buckle Hook

    YC.JG.QX004626
    $31.60
  16. 16

    DJI T100 Frame Connector (Left)

    YC.JG.ZS005948
    $39.70
