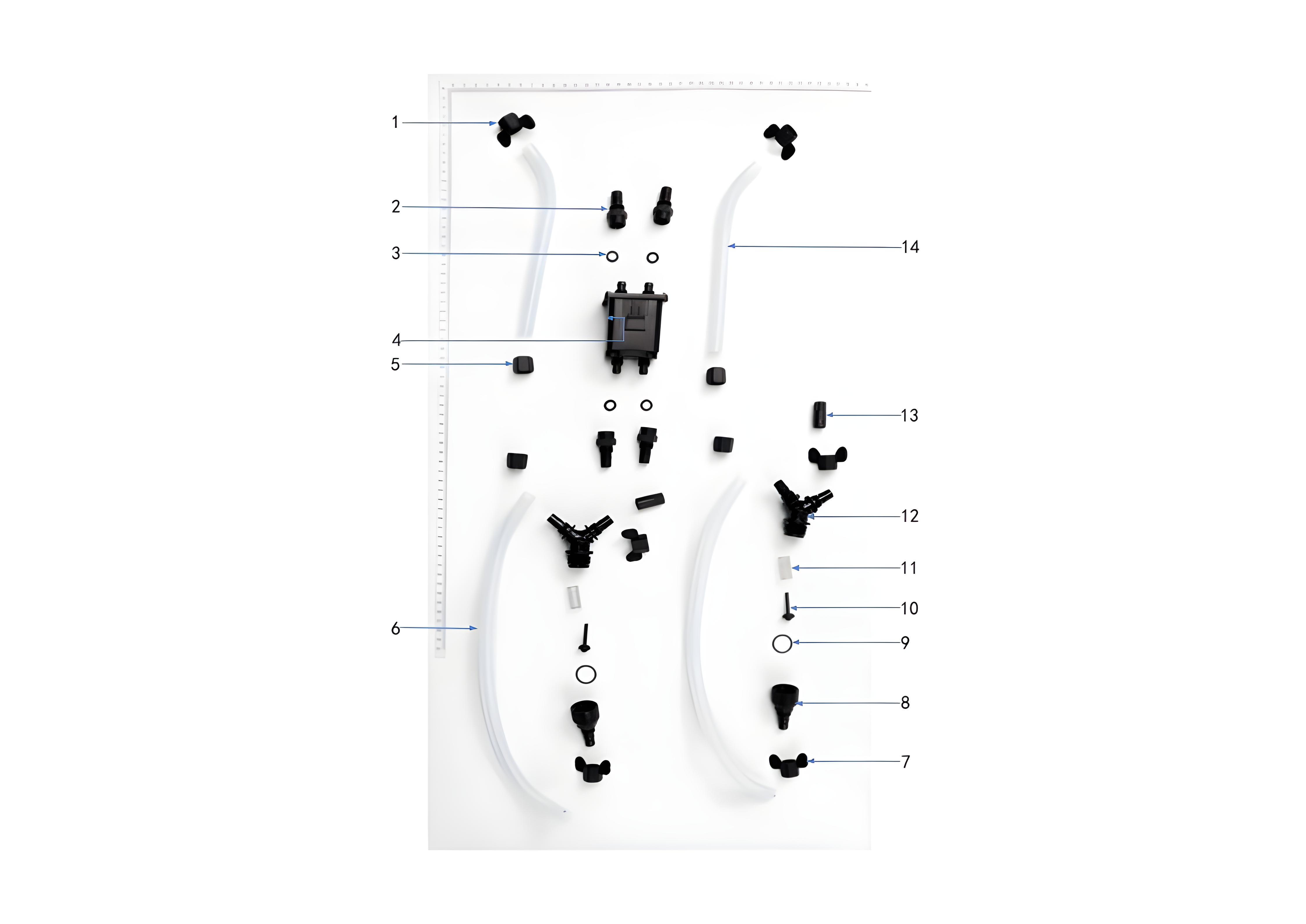

Parts diagram

T100 Flowmeter

13 parts on this diagram · set qty · add to cart

  1. 1

    DJI T100 Thumb Nut

    YC.JG.ZS006171
    $2.30
  2. 2

    DJI T100 Flow Meter Adapter

    YC.JG.ZS006199
    $3.10
  3. 3

    DJI T100 Flow Meter Adapter Sealing Ring

    YC.JG.MY001790
    $4.55
  4. 4

    DJI T100 Flow Meter Module

    BC.AG.SS001031
    $634.50
  5. 5

    DJI T100 Hose Nut

    YC.JG.ZS006165
    $1.55
  6. 6

    DJI T100 Flow Meter Water Outlet Hose

    YC.JG.JS000080
    $12.00
  7. 7

    DJI T100 Thumb Nut

    YC.JG.ZS006171
    $2.30
  8. 8

    DJI T100 One-Way Valve

    YC.JG.ZS006170
    $7.55
  9. 9

    DJI T100 One-Way Valve Sealing Ring

    YC.JG.MY001774
    $1.55
  10. 10

    DJI T100 Valve Core Sealing Ring

    YC.JG.MY001775
    $9.00
  11. 12

    DJI T100 Hose Y-tee Part

    YC.JG.ZS006644
    $6.65
  12. 13

    DJI T100 Single Connector Rubber Stopper

    YC.JG.ZS006115
    $3.10
  13. 14

    DJI T100 Flow Meter Water Inlet Hose

    YC.JG.JS000088
    $10.85
