Parts diagram

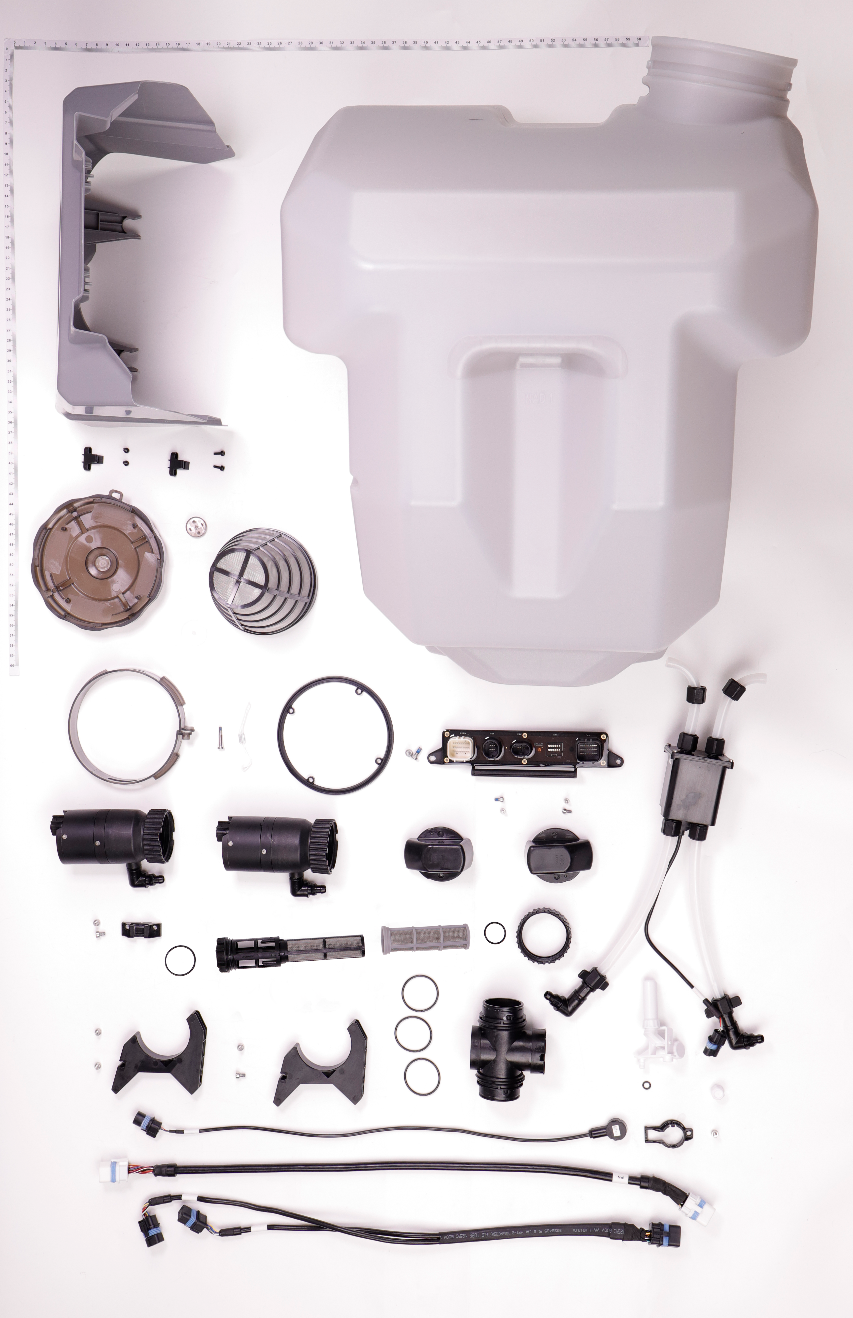

T40 Aircraft Spray Tank

34 parts on this diagram · set qty · add to cart

  1. 1

    DJI T40 Spray Tank Outer Shell

    YC.JG.ZS002307No stock
    —
    —
  2. 2

    DJI T40 Spray Tank (40L)

    YC.JG.CS000012
    —
    —
  3. 3

    DJI T40 T30-HC00600060-057030-0323-N

    YC.WJ.LL000424No stock
    —
    —
  4. 4

    DJI T25P Buckle Base (Female)

    YC.JG.ZS000998Low stock
    $3.95
  5. 5

    DJI T70P Dosing Part Rubber Cover

    YC.JG.ZS002250In stock
    $0.95
  6. 6

    DJI T25P Spray Tank Cover

    YC.JG.ZS002251Low stock
    $55.00
  7. 7

    DJI T25P Spray Tank Inlet Filter

    YC.JG.ZS001085Low stock
    $27.95
  8. 8

    DJI T70P Spray Tank Cover Waterproof Permeability Film

    YC.JG.MY000678In stock
    $2.85
  9. 9

    DJI T25P Spray Tank Cover Sealing Ring

    YC.JG.MY000679In stock
    $3.65
  10. 10

    DJI T25P Spread Tank Lanyard

    YC.BZ.RB000011Low stock
    $141.77
  11. 11

    DJI T25P Spray Tank_Spray Tank Cover Ring

    YC.SJ.WS002423
    —
    —
  12. 12

    DJI T25P M30-HC02050080-070020-5103-Y_01

    YC.WJ.LL000211Low stock
    $2.05
  13. 13

    DJI T25P Impeller Pump Protective Hood

    YC.JG.ZS002389Low stock
    $25.00
  14. 15

    DJI T50 Flow Meter Bracket

    YC.JG.ZS000984In stock
    $8.85
  15. 16

    DJI T70P M40-HC01000100-072028-5103-N_01

    YC.WJ.LL000232No stock
    —
    —
  16. 17

    DJI T50 Quick-Release Filter

    YC.JG.ZS002235No stock
    —
    —
  17. 18

    DJI T70P Filter Rubber Ring

    YC.SJ.J01186No stock
    —
    —
  18. 19

    DJI T25P Screw M40-HC060060-55-85

    YC.WJ.L00876In stock
    $2.05
  19. 20

    DJI T40 Impeller Pump Bracket

    YC.JG.ZS002234No stock
    —
    —
  20. 21

    DJI T40 Liquid Level Meter Module

    BC.AG.SS000547No stock
    —
    —
  21. 22

    DJI T40 Spraying Signal Cable

    YC.XC.XX000835No stock
    —
    —
  22. 23

    DJI T40 Impeller Pump Signal Cable

    YC.XC.XX000857No stock
    —
    —
  23. 24

    DJI T25P Liquid Level Gauge Bracket

    YC.JG.ZS002237In stock
    $0.95
  24. 25

    DJI T25P Screw M40-HC060060-55-85

    YC.WJ.L00876In stock
    $2.05
  25. 26

    DJI T25P Spray Tank_Liquid Level Meter Installation Nut

    YC.SJ.WS002412Low stock
    $8.85
  26. 27

    DJI T25P Spray Tank_Liquid Level Meter Installation Nut Sealing Ring

    YC.XJ.QT000194In stock
    $3.05
  27. 28

    DJI T70P Spray Tank Y-tee Part

    YC.JG.ZS002232No stock
    —
    —
  28. 29

    DJI T25P Spray Tank Liquid Level Meter

    BC.AG.SS000471In stock
    $32.60
  29. 30

    DJI T70P Spray Tank Y-tee Part Sealing Ring

    YC.JG.MY000687In stock
    $3.80
  30. 31

    DJI T70P Water Outlet Rotation Cover

    YC.JG.ZS002233No stock
    —
    —
  31. 32

    DJI T50 Filter With 50 Holes

    YC.JG.ZS002429Low stock
    $26.50
  32. 33

    DJI T70P Screw M30-HC060060-55-85

    YC.WJ.L00870In stock
    $4.90
  33. 35

    DJI T40 Spraying Adapter Module

    BC.AG.SS000546No stock
    —
    —
  34. 36

    DJI T25P Screw M40-HC060060-55-85

    YC.WJ.L00876In stock
    $2.05
