Parts diagram

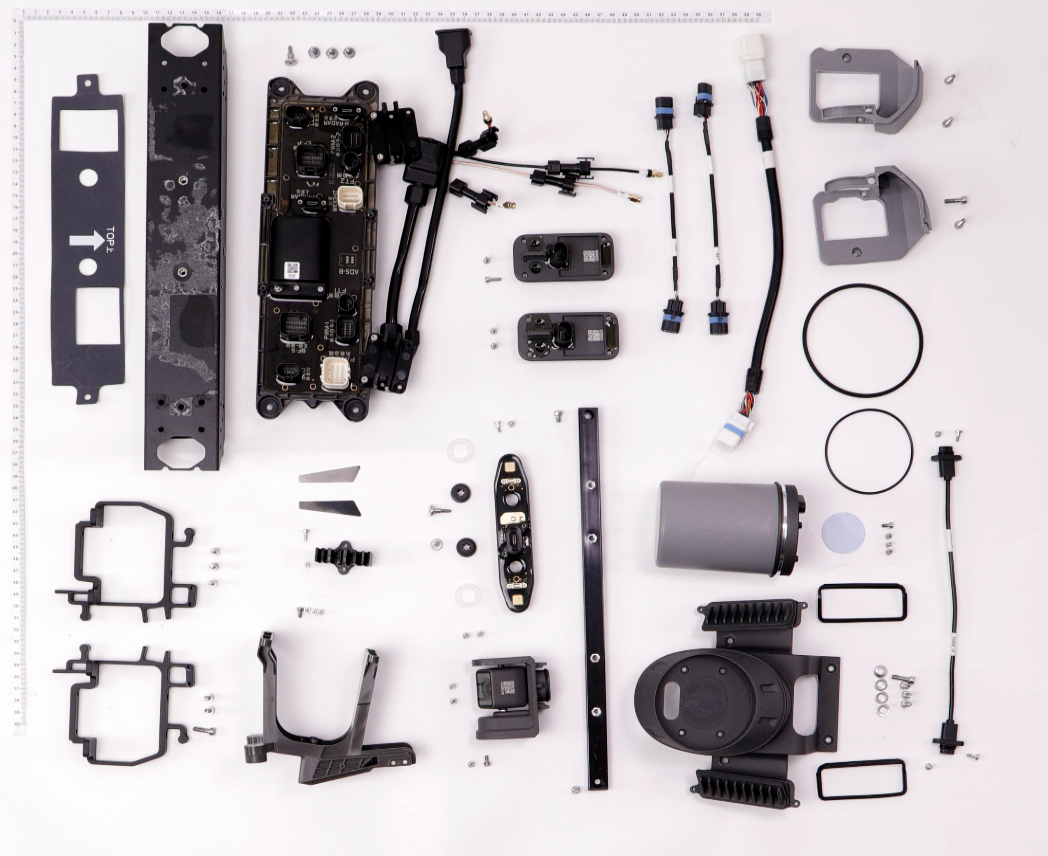

T40 Aircraft Front Frame

43 parts on this diagram · set qty · add to cart

  1. 1

    DJI T70P M30-HC01450080-100020-5103-Y

    YC.ST.LL000226In stock
    $0.95
  2. 2

    DJI T40 Front Frame Aluminum Tube

    BC.AG.SS000576No stock
    —
    —
  3. 3

    DJI T40 Front Frame Insulation Sheet

    YC.JG.MQ001382No stock
    —
    —
  4. 5

    DJI T70P Screw M30-HC100100-55-85

    YC.WJ.L00871In stock
    $4.90
  5. 6

    DJI T70P M25-HC060060-45-85

    YC.WJ.L01549
    —
    —
  6. 7

    DJI T40 Dual Vision Sensors Sealing Ring

    YC.JG.MY000719No stock
    —
    —
  7. 8

    DJI T40 Damping Pad

    YC.JG.MY000380
    —
    —
  8. 9

    DJI T70P M30-HC01450080-100020-5103-Y

    YC.ST.LL000226In stock
    $0.95
  9. 10

    DJI T40 FPV Bracket Decorative Piece (Right)

    YC.JG.MQ001384No stock
    —
    —
  10. 11

    DJI T40 FPV Bracket Decorative Piece (Left)

    YC.JG.MQ001383No stock
    —
    —
  11. 12

    DJI T40 Front Shell Bracket (Right)

    YC.JG.QX002208Low stock
    $29.00
  12. 13

    DJI T25P T30-HC00800080-057030-5103-N

    YC.ST.LL000235
    —
    —
  13. 14

    DJI T40 Propulsion Cable Clip

    YC.JG.ZS002455No stock
    —
    —
  14. 15

    DJI T70P Screw M30-HC060060-55-85

    YC.WJ.L00870In stock
    $4.90
  15. 16

    DJI T70P Screw M30-HC060060-55-85

    YC.WJ.L00870In stock
    $4.90
  16. 17

    DJI T40 FPV Bracket

    YC.JG.ZS002279No stock
    —
    —
  17. 18

    DJI T100 Screw M40-HC01400140-070039-0003-Y

    YC.ST.LL000013Low stock
    $2.05
  18. 19

    DJI T40 Front Shell Bracket (Left)

    YC.JG.QX002209Low stock
    $29.00
  19. 20

    DJI T40 FPV Module

    BC.AG.SS000549No stock
    —
    —
  20. 21

    DJI T70P Screw M30-HC060060-55-85

    YC.WJ.L00870In stock
    $4.90
  21. 22

    DJI T25P Screw M40-HC060060-55-85

    YC.WJ.L00876In stock
    $2.05
  22. 23

    DJI T40 Radar Crossbeam

    YC.JG.QX002207No stock
    —
    —
  23. 24

    DJI T40 Omnidirectional Radar Fixing Base_Heat Sink Part Sealing Ring

    YC.JG.MY000691
    —
    —
  24. 25

    DJI T70P Screw M25-HC00780040-040020-5108-N

    YC.ST.LL000122In stock
    $2.05
  25. 26

    DJI T40 Omnidirectional Radar Fixing Base

    YC.JG.YZ000498No stock
    —
    —
  26. 27

    DJI T100 Screw M40-HC01400140-070039-0003-Y

    YC.ST.LL000013Low stock
    $2.05
  27. 29

    DJI T40 Omnidirectional Radar Fixing Base_Heat Sink Part Sealing Ring

    YC.JG.MY000691
    —
    —
  28. 30

    DJI T40 Omnidirectional Radar Signal Cable

    YC.XC.XX000844No stock
    —
    —
  29. 31

    DJI T40 Radar Fixing Base Thermal Pad

    YC.JG.MQ000710No stock
    —
    —
  30. 32

    DJI T70P Screw M30-HC060060-55-85

    YC.WJ.L00870In stock
    $4.90
  31. 33

    DJI T40 Omnidirectional Radar Module (Including Signal Cable)

    BC.AG.SS000551No stock
    —
    —
  32. 34

    DJI T40 Radar Hood Sealing Ring (Outer)

    YC.JG.MY000746No stock
    —
    —
  33. 35

    DJI T40 Forward Vision Sensor Module

    BC.AG.SS000562No stock
    —
    —
  34. 36

    DJI T40 Omnidirectional Radar Fixing Base Sealing Ring

    YC.JG.MY000745No stock
    —
    —
  35. 37

    DJI T40 Auxiliary Bottom Light Module (Including Signal Cable)

    BC.AG.SS000548No stock
    —
    —
  36. 38

    DJI T40 Front Frame Cable Bracket (Left)

    YC.JG.ZS002476No stock
    —
    —
  37. 39

    DJI T100 Screw M40-HC01400140-070039-0003-Y

    YC.ST.LL000013Low stock
    $2.05
  38. 40

    DJI T40 Auxiliary Bottom Light Signal Cable

    YC.XC.XX000853No stock
    —
    —
  39. 41

    DJI T40 Spraying Adaptive Cable

    YC.XC.XX000842No stock
    —
    —
  40. 42

    DJI T40 Front Frame Cable Bracket (Right)

    YC.JG.ZS002415No stock
    —
    —
  41. 43

    DJI T40 Side Arm

    YC.JG.ZS002304No stock
    —
    —
  42. 44

    DJI T50 M20-PC00400040-040010-5103-Y

    YC.ST.LL000228
    —
    —
  43. 45

    DJI T40 Enhanced Supporting Piece

    YC.JG.QX002407No stock
    —
    —
